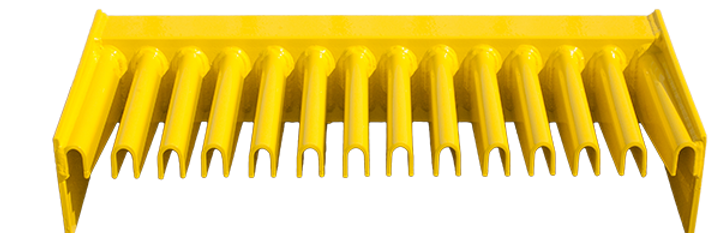

STATIONARY ROD HANGERS
Hubbard Crall Stationary Rod Hangers are available in three different
styles to handle any rod hanging needs.
Through the use of our Standard and Special S-S Adapter Sleeves our
rod hangers can fit any size rod in the field.
STATIONARY ROD HANGER SPECIFICATIONS
STANDARD ROD HANGERS
FOR 1/2" TO 1" STEEL RODS
Hanger Number of stands for each size rod *Weight *Length Width
88 132 99 88 77 66 145 lbs 31-1/2" 16-1/2"
96 144 108 96 84 72 155 lbs 34-1/8" 16-1/2"
104 156 117 104 91 78 165 lbs 36-3/4" 16-1/2"
112 168 126 112 98 84 175 lbs 39-3/8" 16-1/2"
120 180 135 120 105 90 185 lbs 42" 16-1/2"
128 192 144 128 112 96 195 lbs 44-5/8" 16-1/2"
136 204 153 136 119 102 205 lbs 47-1/4" 16-1/2"
144 216 162 144 126 108 215 lbs 49-7/8" 16-1/2"
Rod Size 1/2" 5/8" 3/4" 7/8" 1"
Smaller and larger Hanger sizes are available upon request. * Weight and length is approximate
SPECIAL S-S ROD HANGERS
FOR 5/8" TO 1-1/8" STEEL RODS
Hanger Number of stands for each size rod *Weight *Length Width
88 99 88 77 66 55 139 lbs 32-1/8" 16-1/2"
96 108 96 84 72 60 149 lbs 34-13/16" 16-1/2"
104 117 104 91 78 65 159lbs 37-1/2" 16-1/2"
120 135 120 105 90 75 179 lbs 42-7/8" 16-1/2"
128 144 128 112 96 80 189 lbs 45-9/16" 16-1/2"
112 126 112 98 84 70 169 lbs 40-3/16" 16-1/2"
136 153 136 119 102 85 199 lbs 48-1/4" 16-1/2"
144 162 144 126 108 90 209 lbs 50-15/16" 16-1/2"
Rod Size 5/8" 3/4" 7/8" 1" 1-1/8"
Smaller and larger Hanger sizes are available upon request. *Weight and length is approximate
FIBERGLASS ROD HANGERS
FOR 1.25" FIBERGLASS RODS AND 5/8" TO 1-1/8" STEEL RODS
Hanger Number of stands for each size rod *Weight *Length Width
88 55 99 88 77 66 55 139 lbs 30-1/4" 16-1/2"
96 60 108 96 84 72 60 149 lbs 33-1/8" 16-1/2"
104 65 117 104 91 78 65 159lbs 36" 16-1/2"
112 70 126 112 98 84 70 169 lbs 38-7/8" 16-1/2"
120 75 135 120 105 90 75 179 lbs 44-5/8" 16-1/2"
128 80 144 128 112 96 80 189 lbs 47-1/2" 16-1/2"
136 85 153 136 119 102 85 199 lbs 50-3/8" 16-1/2"
144 90 162 144 126 108 90 209 lbs 53-1/4" 16-1/2"
Rod Size 1.25FG 5/8" 3/4" 7/8" 1" 1-1/8"
Smaller and larger Hanger sizes are available upon request. *Weight and length is approximate
